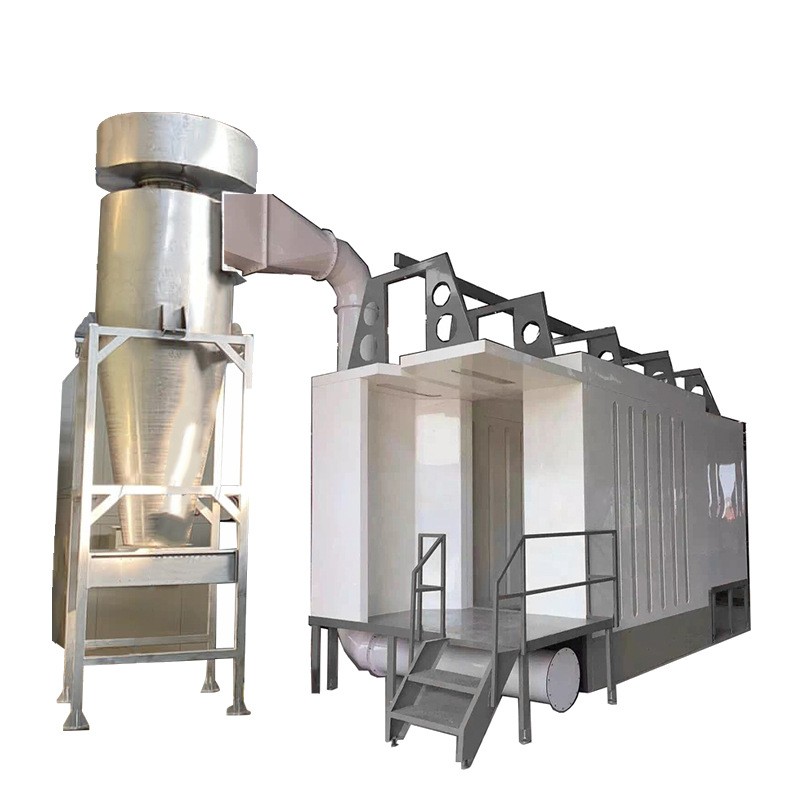

Large Cyclone PP Recycling System  BOOTH-LC

Various air purification systems are integrated into the booth floor to regularly remove powder accumulated on the booth floor and push it to the air extraction recovery system. The spray booth floor is kept clean with only a small amount of powder.

1. Simple and fast color change

Color changes are accelerated because the booth can be cleaned faster and easier. It has minimal impact on production interruption and greatly improves production efficiency.

2. Save powder

Since less powder accumulates on walls and deposited particles can be easily removed, more overspray powder is recycled and reused rather than being sprayed into waste.

3.Cleaner working conditions

During color changes, operators do not need to remove thick layers of powder from the powder booth. The operator's health is better protected and the risk of powder escaping and contaminating the environment is minimized.

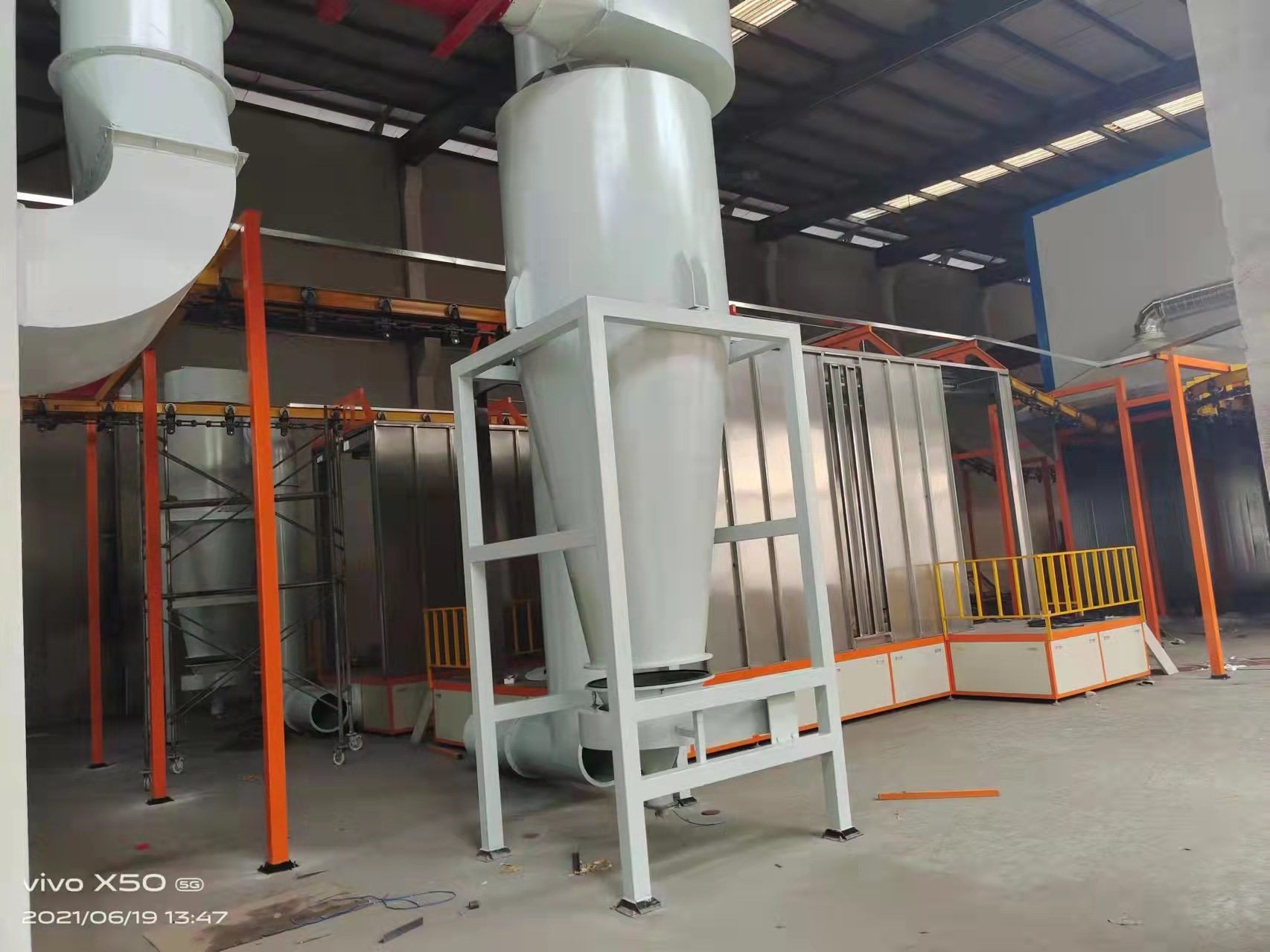

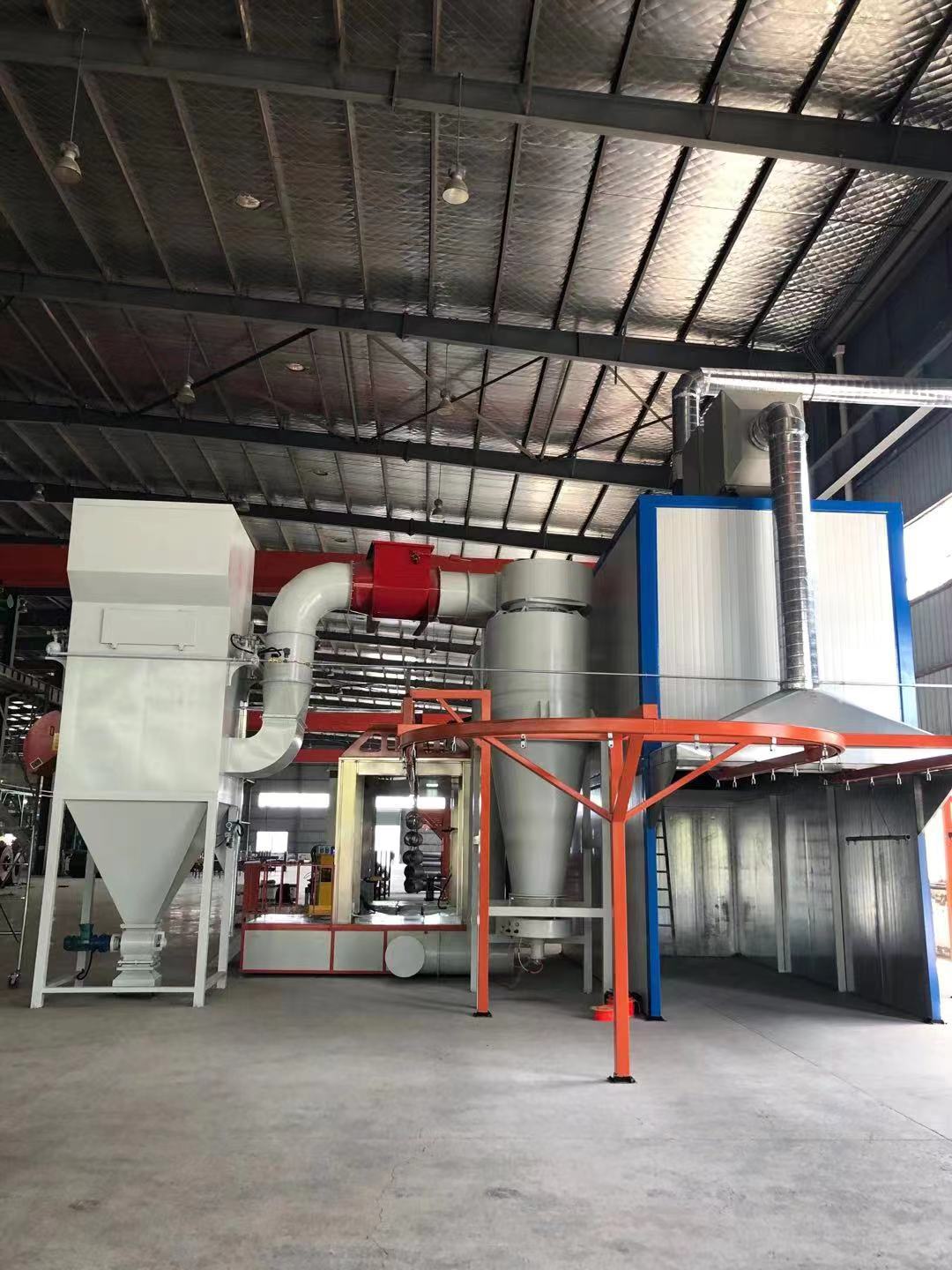

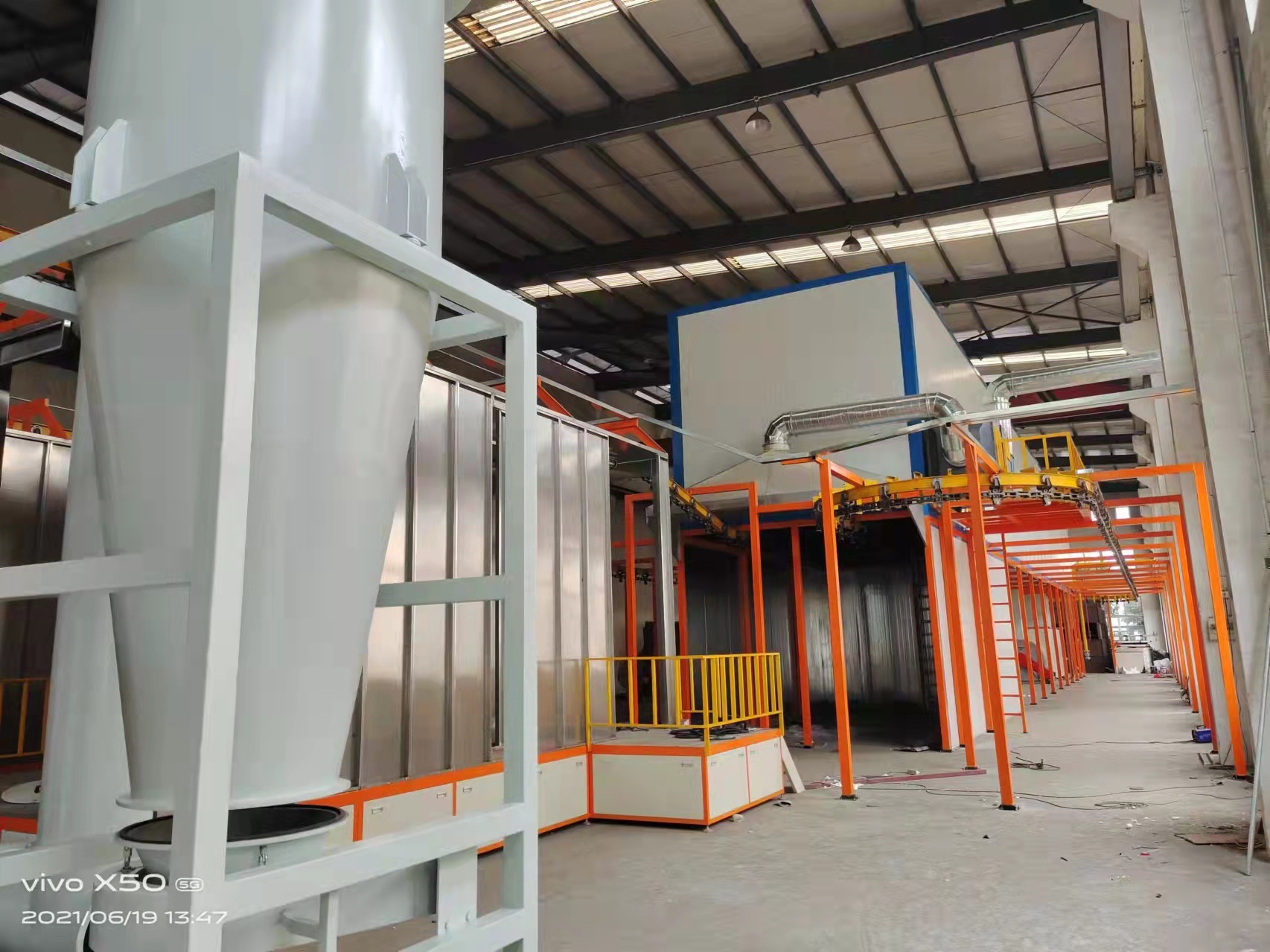

1. The large cyclone powder spraying room is actually one of the process equipment in the induction and powder spraying equipment assembly line. Powder recovery depends entirely on it. The large cyclone powder spraying room has the following advantages and characteristics:

2. Big Cyclone adopts European technology and optimizes the combination with Chinese characteristics, and the recovery rate can reach more than 95%.

3. The powder spraying room equipment can be equipped with an automatic recovery and powder screening system to ensure the normal pollution-free circulation of the powder.

4. Features of large cyclone: reduce powder consumption and save powder:

5. Using high-efficiency separation cyclone, the recovery efficiency is over 95%.

6. A powder collection fluidization tank is designed at the bottom of the spray booth to recycle oversprayed powder directly into the powder supply barrel, reducing the loss of cyclone recycling.

7. Low energy consumption, compared with similar small cyclone equipment, power consumption is saved by one third.

8. The bottom plate of the spray booth is made of stainless steel plate, and the side plates and top plates are made of PP plate material, which makes cleaning very fast. It adopts a single-tube large cyclone two-stage recovery system, which is currently one of the most recognized recovery systems in the country. The color change time is about 20 minutes.

9. The length of the spray booth is shortened, which reduces the cleaning time of the spray booth. The lower cone tube of the large cyclone is connected with a hinged quick buckle, which can be easily moved and cleaned.


10. The Siemens configuration of the large cyclone powder spraying system is like a human-machine interface, and parameter setting is convenient and simple; the friendly Chinese human-machine interface uses pictorial symbols and has functions such as parameter setting, alarm information prompts, maintenance prompts, and password protection. This makes the entire equipment simple to operate and easy to maintain.
